Our specialized kit for force measurements
As an ideal solution for engineers, technicians and research institutions who want to begin quickly and efficiently with PNC force sensor measurements, our kit is developed as a plug-n-play product with everything to get started.
Easy Installation
Thanks to the plug-n-play design, the kit can be installed without extensive prior knowledge.
Versatile application possibilities
Ideal for research, prototyping or industrial applications.
High performance
Our sensors measure an extended range of forces in demanding environments.
Compatibility
The kit is compatible with common open source software solutions and hardware platforms.
Innovative PNC Material core
Specific advantages
Using our proprietary PNC material as the core innovation of our sensor kit, we achieve the highest performance with our own specially developed readout electronics.
Insight into the performance and functionality of our impedance sensor kit can be gained from the following documentation:
Large measurement range
Through utilizing our patented impedance readout method, our 20mm PNC force sensors can perform measurements from 1g to 15kg with only a single sensor.
Robust sensor design
The base PNC material is a medical grade elastomere, capable of withstanding 10MPa of pressure without being damaged.
Five sensor readouts

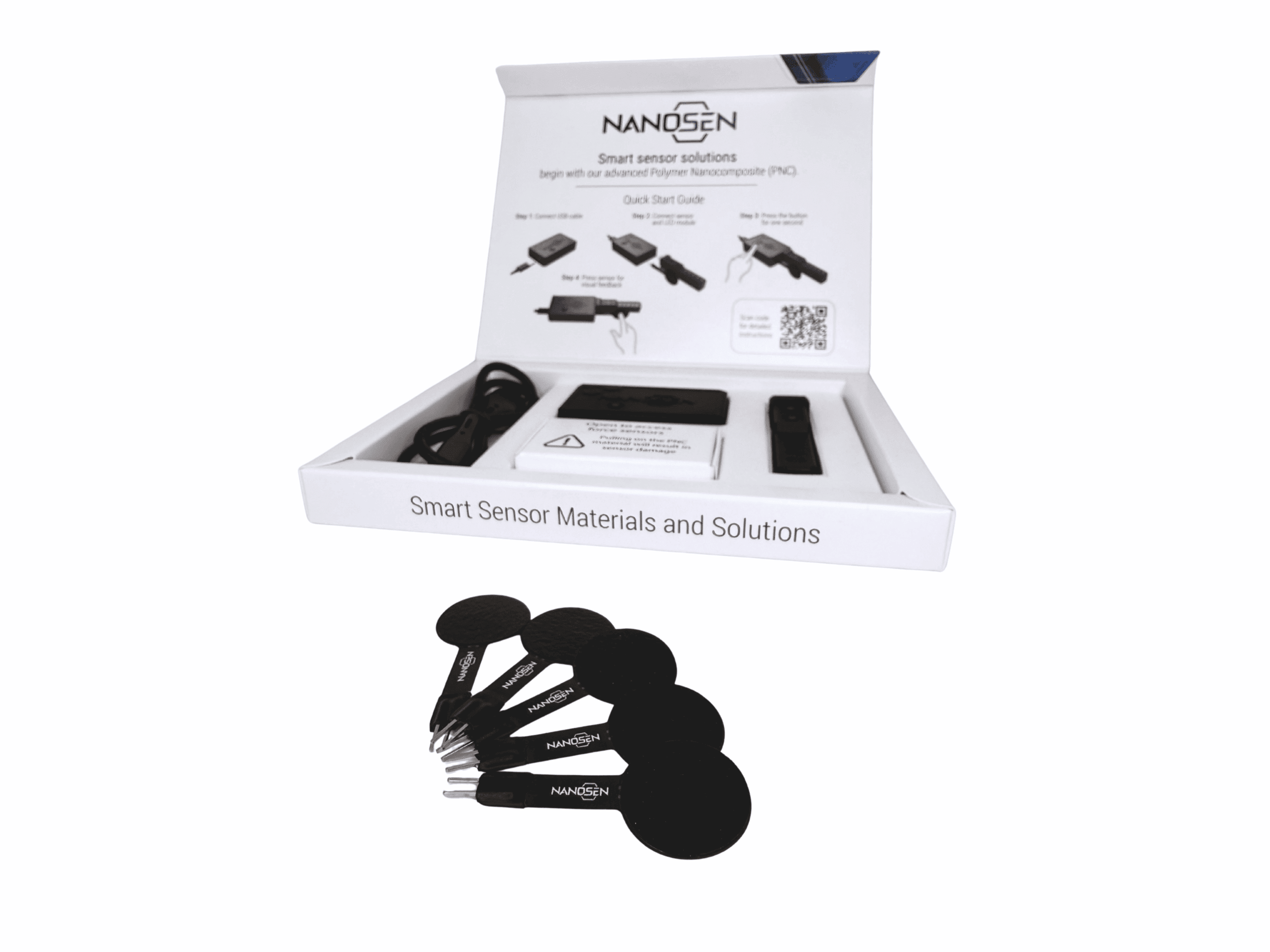

The PNC sensor kit provides five 20mm force sensors, which can be used in parallel with our readout electronics for measuring forces at different points.
Easy calibration LED readout
Equipped with minimum and maximum range calibration buttons, the LED strip can be used for visualizing force measurements without the need for separate programing.
Seamless integration
Our readout electronics can be integrated with established hardware platforms through USB and I²C. With unique hardware addressing, more than one kit can be used within the same system.
Compact design
Being only 60mm long and 35mm wide, our readout electronics can be installed with ease.
Stay tuned! Subscribe to our YouTube channel or follow us on our social media platforms to make sure you don’t miss any new videos and stay informed about the latest developments at NanoSen GmbH!
Product videos
Get to know the technology
Revolutionizing Force Measurement: Discover the Power of Polymer Nanocomposites
Introduction
This short explainer video introduces Polymer Nanocomposite (PNC) technology, highlighting its composition, properties, and advantages in force sensing.
Sensor Kit Unboxing
Hands-on demonstrations showcasing the PNC force sensing material in action. This video shows real-time measurements of force applied to the material and visualizations of data output.
PNC Properties – Robustness
A series of short clips demonstrating the robustness of our PNC material with dynamic and static load tests as well as a demonstration of its overload resistance.
Technical Deep Dive
This informative video features our technical experts explaining the science behind PNC materials and its unique properties.
