A Plug-and-Play Solution for Multi-Point Force Sensing
Designed for engineers, developers, and research teams, the NanoSen Force Matrix Kit enables precise, simultaneous multi-point force measurements using our proprietary Force Sensing Impedance (FSI) technology. The plug-and-play
system provides high-resolution force mapping for rapid prototyping, tactile sensing research, and system integration.
Limited quantities of the new Force Matrix Kit are available.
If the current batch runs out, you will automatically place a preorder and receive your kit in about two weeks.
Easy Installation
The plug-and-play architecture enables fast setup with minimal configuration – ideal for laboratory testing, prototyping, and development environments.
MULTI-POINT MEASUREMENT
Supports up to 100 sensor points (6×6 included in the kit) simultaneously with automatic matrix size detection.
HIGH ACCURACY & CROSSTALK ELIMINATION
Active electrical crosstalk elimination ensures stable, interference-free readings — even in dense sensor arrays.
COMPATIBILITY & FLEXIBILITY
Data output via UART and I2C, optional wireless transmission, and USB power.
Technical Support at No Extra Cost
Every NanoSen evaluation kit includes free technical support. Whether you need help with setup, sensor integration, or measurement optimization, our team is here to assist you.
FORCE SENSING IMPEDANCE TECHNOLOGY
Specific Advantages
Combining adaptable PNC-sensing layers with NanoSen’s proprietary Force Sensing Impedance (FSI) technology, the Force Matrix Kit enables stable and sensitive multi-point force measurements in a scalable matrix architecture.
Readout electronics
Necessary for measuring the force sensor matrix while actively suppressing electrical crosstalk between sensors.

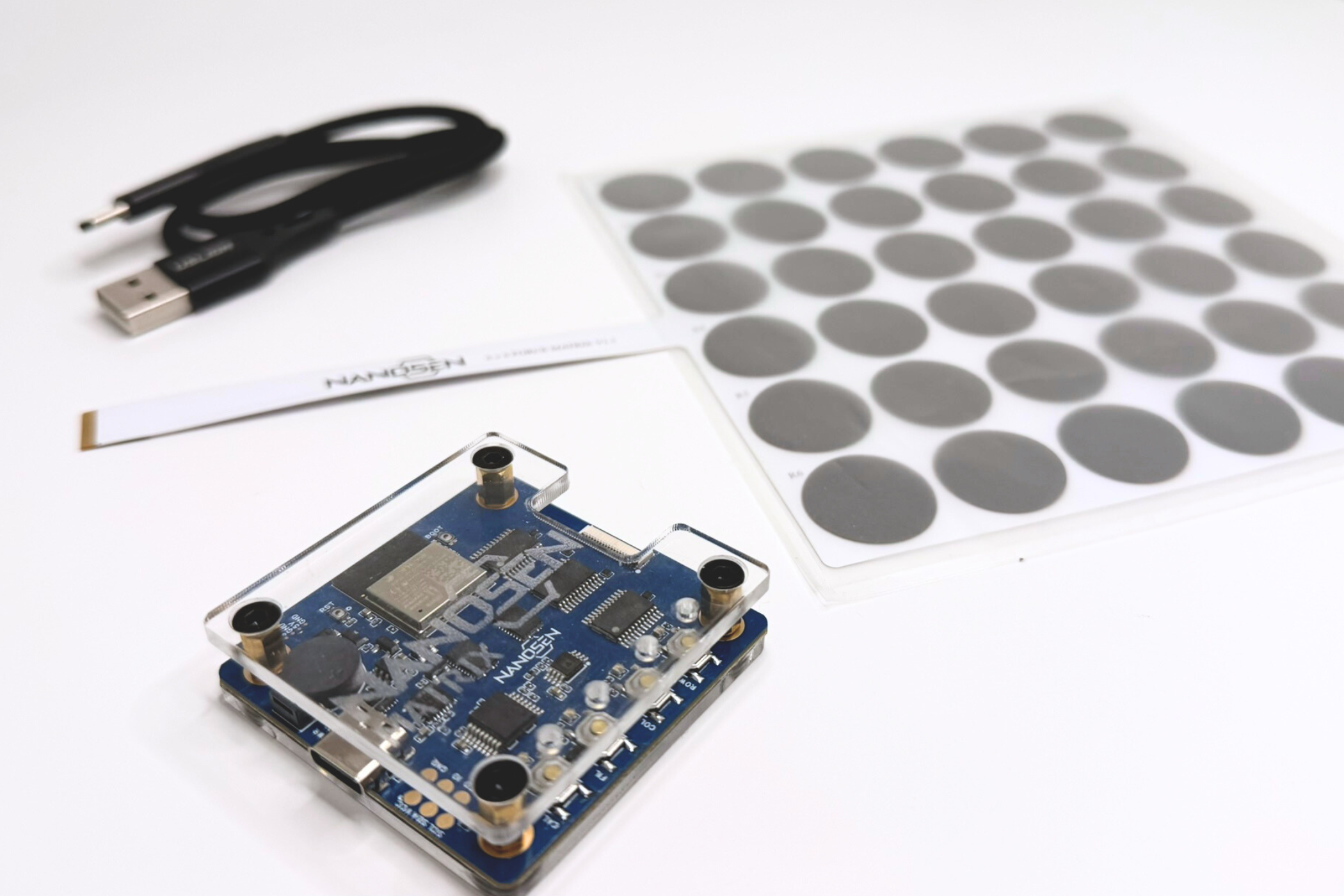

Sensor matrix
The 6×6 sensor matrix is formed by 36 sensor points with a 20 mm diameter PNC sensor material combined with suitable contact electrodes.
USB cable
For connecting the readout electronics to a PC for power and serial data transmission.
*Optional upgrade: The readout electronics can be upgraded to 100 sensor channels under request
Large Measurement Coverage
The configurable matrix design captures detailed force distribution patterns across multiple points simultaneously — ideal for surface contact analysis or tactile mapping.
Accurate and Robust Sensor Design
PNC films combine flexibility with durability, maintaining reliable operation under mechanical stress and repeated load cycles.
Scalable Architecture
The modular matrix interface allows custom configurations up to 10×10 points — easily expandable for system-level integration.
Smart Initialization Feedback
Integrated buzzer and automatic matrix recognition simplify startup and calibration, enabling consistent measurement conditions.
Seamless System Integration
Compact readout electronics and standard I2C/UART interfaces ensure compatibility with common research and automation platforms.
Compact Form Factor
At only 5 cm × 5 cm, the electronics module can be embedded directly into prototypes or test rigs with minimal footprint.
Frequently asked Questions
The kit enables simultaneous measurement of distributed forces across multiple points. It is ideal for applications in tactile sensing, pressure mapping, robotics, and experimental material testing.
The system supports up to 100 sensor points in a 10 × 10 matrix configuration, with automatic matrix size detection.
The readout electronics support 2 samples per second (sps) for 100 points and 5 sps for smaller matrices (e.g., 6 × 6). This ensures stable operation even at high channel counts.
The standard firmware supports up to 10 × 10 nodes. Larger configurations can be achieved by synchronizing multiple readout modules — NanoSen offers development support for such setups.
